Výkonový modul: LUNA2000-10KW-C1
Počet napájacích modulov: 1
Modul batérie: LUNA2000-7-E1
Kapacita batériového modulu: 6,9 kWh
Počet batériových modulov: 1
Menovitý vybíjací výkon: 3,5 kW
Maximálny vybíjací výkon: 3,5 kW
Rozsah prevádzkového napätia (1-fázový WR/L1): 350 - 560 V
Rozsah prevádzkového napätia (3-fázový WR M1/MB0): 600 - 980 V

Počet batériových modulov: 1
Využiteľná energia batérie: 6,9 kWh
Max. nabíjací a vybíjací výkon: 3,5 kW
Rozsah prevádzkového napätia (1-fázový): 350 ~ 560 V
Rozsah prevádzkového napätia (3-fázové): 600 ~ 980 V
Rozmery batériového modulu (Š x H x V): 590 x 255 x 360 mm
Hmotnosť batériového modulu: 68 kg
Škálovateľnosť: Max. 4 systémy v paralelnej prevádzke
Kompatibilné meniče:
SUN2000-2/3/3,68/4/4,6/5/6KTL-L1, SUN2000-8/10K-LC0
SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25K-MB0

Záloha celého domu, nie je potrebný ďalší rozvádzač.
≤ 20 ms Ultra rýchle prepnutie do režimu záložného napájania.
Poskytnutie režimu obtoku, keď dôjde k poruche.
Inteligentné ovládanie záťaže so zabudovanou EMMA.

Pomoc pri riadení energie.
Optimalizácia plánovania FV a ESS na základe predikcie.
Vstavaný modul WLAN/FE.
Kompatibilné s viacerými domácimi spotrebičmi.
Integrované meranie.
Dokáže implementovať jednotné plánovanie a riadenie domácej energie.

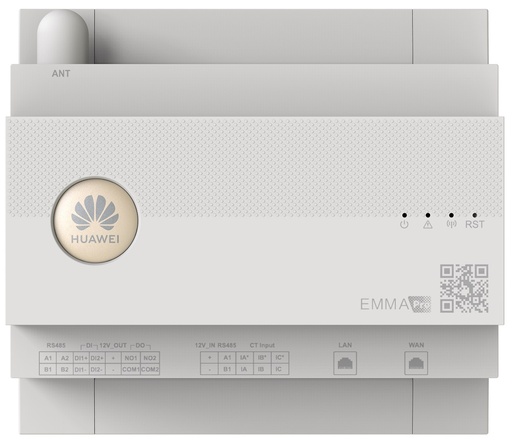

Okrem jednotného plánovania domácej energie sa EMMA-A02 môže pripojiť k inteligentným záťažiam, ako sú nabíjačky, tepelné čerpadlá SG Ready a inteligentné spínače.
Používatelia si môžu nastaviť čas rezervácie na nabíjanie vozidiel a ohrev vody vopred v určený čas.

Max. input voltage: 1100 V, Number of MPP trackers: 2,
Number of inputs: 4, Rated output power: 17 kW,
Rated output voltage: 220 Vac/380 Vac, 230 Vac/400 Vac,
240 Vac/415 Vac; 3 W/N+P,
Rated output current: 24.5 A/400 Vac,
Cooling: Smart air cooling, Display: LED indicators,
Integrated WLAN + FusionSolar application, Protection level: IP66,
Weight: 21 kg, Dimensions (W x H x D): 546 x 460 x 228 mm

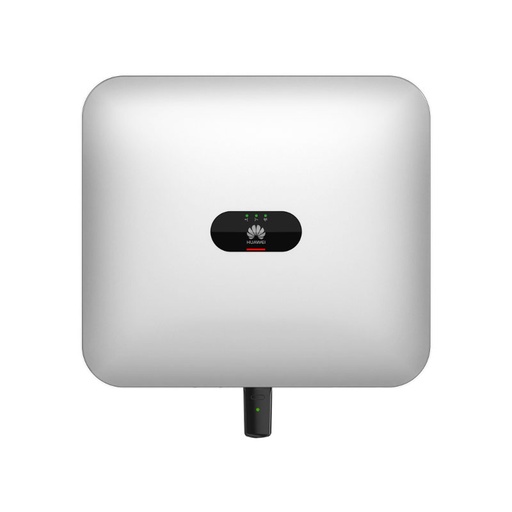

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Scalability (Expandability): Max. 2 systems in parallel operation
Compatible inverters:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1,
SUN2000-3/4/5/6/8/10KTL-M0,
SUN2000-3/4/5/ 6/8/10KTL-M1

Three-phase power sensor
Huawei DTSU666-H 100A
with integrated display

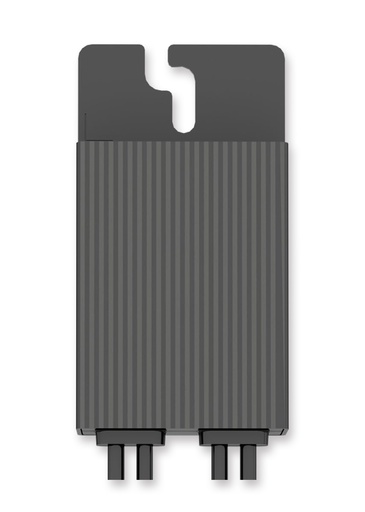

HUAWEI performance and security optimizer.
1x Optimizer = 1x PV panel, Rated power: 450 W,
Absolute maximum input voltage: 80 V,
MPPT operating voltage: 10 - 80 V,
Max. input current: 14.5 A, Max. efficiency: 99.5%,
Weighted efficiency: 99.0%, Overvoltage category: II

Max. input voltage: 1,100 V, Number of MPP trackers 4,
Max. number of inputs 8, Rated output power: 50 kW,
Rated output voltage: 220 V / 380 V, 230 V / 400 V,
standard 3W + N + PE; 3W + PE selectable in settings,
Rated output current: 76 A / 380 V, Cooling: Smart air cooling,
Display: LED indicators, Integrated Bluetooth + FusionSolar application,
Protection Degree: IP66, Weight (with mounting plate): 43 kg,
Dimensions (W x H x D): 640 x 530 x 270 mm

The device is a multifunctional network analyzer and is suitable for:
- Measurements and calculations of electrical quantities such as voltage,
current, power, energy, harmonic current in the installation building
- Expansion of the range of functions using optional modules
(maximum 3 different modules)
- Measurements of voltages and currents in the same networks
- Measurements in low voltage networks (3-phase 4-wire systems)
- Mounting on a 35 mm DIN rail

Preferred PV power, Automatic phase switching,
All in one app, Dynamic charging power,
3-step installation, Automatic verification

HUAWEI

HUAWEI

HUAWEI

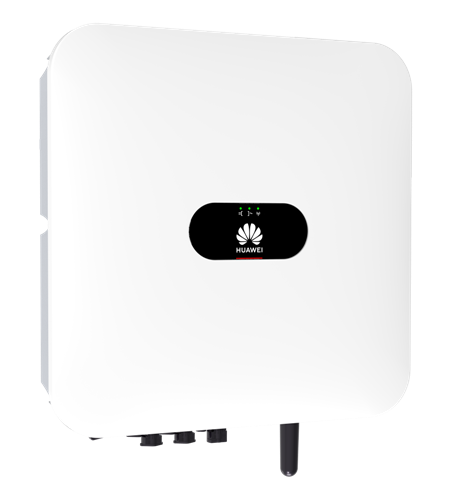

Single-phase Ongrid / hybrid inverter Huawei SUN2000
Highly efficient single-phase inverters Huawei SUN2000
with the possibility of "plug and play" connection of batteries
☀️Compatible batteries LG Chem RESU 7H RS485 and LG Chem RESU 10H RS485
☀️Possibility of connecting optimizers️, Possibility of connecting DTSU and DDSU

Single-phase Ongrid / hybrid inverter Huawei SUN2000
Highly efficient single-phase inverters Huawei SUN2000
with the possibility of "plug and play" connection of batteries
☀️Compatible batteries LG Chem RESU 7H RS485 and LG Chem RESU 10H RS485
☀️Possibility of connecting optimizers️, Possibility of connecting DTSU and DDSU

Single-phase Ongrid / hybrid inverter Huawei SUN2000
Highly efficient single-phase inverters Huawei SUN2000
with the possibility of "plug and play" connection of batteries
☀️Compatible batteries LG Chem RESU 7H RS485 and LG Chem RESU 10H RS485
☀️Possibility of connecting optimizers️, Possibility of connecting DTSU and DDSU

Single-phase Ongrid / hybrid inverter Huawei SUN2000
Highly efficient single-phase inverters Huawei SUN2000
with the possibility of "plug and play" connection of batteries
☀️Compatible batteries LG Chem RESU 7H RS485 and LG Chem RESU 10H RS485
☀️Possibility of connecting optimizers️, Possibility of connecting DTSU and DDSU

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Max. input voltage: 1,100 V, Number of MPP trackers 6, Max. number of inputs 12, Rated output power: 60 kW Rated output voltage: 220 V / 380 V, 230 V / 400 V, standard 3W + N + PE; 3W + PE optional in settings; 277 V / 480 V, 3W + PE Rated output current: 91.2 A @380 V, 86.7 A @400 V, 72.2 A @480 V, Cooling: Natural convection Display: LED indicators, Integrated Bluetooth/WLAN + FusionSolar application, Degree of coverage : IP65 Weight (with mounting plate): 74 kg, Dimensions (W x H x D): 1,075 x 555 x 300 mm

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Max. input voltage: 1100 V, Number of MPP trackers 4,
Number of inputs 8, Rated output power: 40 kW,
Rated output voltage: 230 Vac / 400 Vac, 3 W / N+PE,
Rated output current: 57.8 A, Cooling: Natural convection,
Display: LED indicators, Integrated WLAN + FusionSolar application,
Degree of protection: IP66, Weight (with mounting plate): 43 kg,
Dimensions (W x H x D): 640 x 530 x 270 mm

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Max. input voltage: 1100 V, Number of MPP trackers 4,
Number of inputs 8, Rated output power: 36 kW,
Rated output voltage: 230 Vac / 400 Vac, 3 W / N+PE,
Rated output current: 52 A, Cooling: Natural convection,
Display: LED indicators, Integrated WLAN + FusionSolar application,
Degree of protection: IP66, Weight (with mounting plate): 43 kg,
Dimensions (W x H x D): 640 x 530 x 270 mm

Max. input voltage: 1100 V, Number of MPP trackers 4,
Number of inputs 8, Rated output power: 30 kW,
Rated output voltage: 230 Vac / 400 Vac, 3 W / N+PE,
Rated output current: 43.3 A, Cooling: Natural convection,
Display: LED indicators, Integrated WLAN + FusionSolar application,
Protection Degree: IP66, Weight (with mounting plate): 43 kg,
Dimensions (W x H x D): 640 x 530 x 270 mm

Three-phase industrial ongrid inverters Huawei SUN2000 ver. M2
Highly efficient three-phase inverters Huawei SUN2000 ver. M2
for industrial objects, Option to connect optimizers,
Option to connect DTSU and DDSU

Three-phase industrial ongrid inverters Huawei SUN2000 ver. M2
Highly efficient three-phase inverters Huawei SUN2000 ver. M2
for industrial objects, Option to connect optimizers,
Option to connect DTSU and DDSU

Three-phase industrial ongrid inverters Huawei SUN2000 ver. M2
Highly efficient three-phase inverters Huawei SUN2000 ver. M2
for industrial objects, Option to connect optimizers,
Option to connect DTSU and DDSU

Three-phase Ongrid / hybrid inverters Huawei SUN2000 ver. M1
Highly efficient three-phase inverters Huawei SUN2000 ver. M1
with "plug and play" battery connection option
Compatible HUAWEI batteries, Option to connect optimizers,
Option to connect DTSU and DDSU

Max. input voltage: 1,100 V, Number of MPP trackers 10,
Max. number of inputs 20, Rated output power: 100 kW,
Rated output voltage: 480 V/ 400 V/ 380 V, 3W+(N)+PE,
Rated output current: 120.3 A @480 V, 144.4 A @400 V, 152.0 A @380 V,
Smart air cooling, Display: LED indicators, Integrated WLAN
+ FusionSolar application Degree of protection: IP66,
Weight (with mounting plate): 90 kg,
Dimensions (W x H x D): 1,035 x 700 x 365 mm

Scalability (Expandability): Max. 2 systems in parallel operation
Compatible inverters:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1,
SUN2000-3/4/5/6/8/10KTL-M0,
SUN2000-3/4/5/ 6/8/10KTL-M1

Huawei LUNA2000 - wall battery holder,
Material: Sheet metal, Application environment: Outdoor,
Length: 584 mm Width: 160 mm Height: 371 mm,
Weight 5 Kg

HUAWEI Backup Box-B1
power 3300VA
designed for inverters:
HUAWEI SUN2000 3/4/5/6/8/10KTL M1

HUAWEI Backup Box-B0
power 5000VA
designed for inverters:
HUAWEI 2/3/3,6/4/5/6KTL L1

Three-phase power sensor
Huawei DTSU666-H - 250A
with integrated display

Measurement accuracy class 1,
LCD display, simple setting and control,
Total energy consumption ≤ 1 W

Support third-party monitoring system,
Plug & Play, Support max. 10 devices,
IP65, Support automatic reconnection
