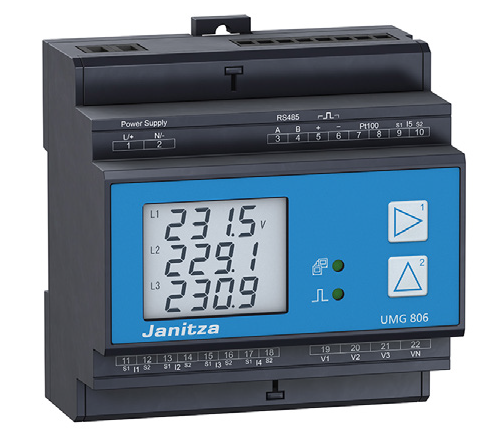

Janitza UMG806

The device is a multifunctional network analyzer and is suitable for:
- Measurements and calculations of electrical quantities such as voltage,
current, power, energy, harmonic current in the installation building
- Expansion of the range of functions using optional modules
(maximum 3 different modules)
- Measurements of voltages and currents in the same networks
- Measurements in low voltage networks (3-phase 4-wire systems)
- Mounting on a 35 mm DIN rail

Attachments

Terms and conditions

Stock availability indicative:
- no information – goods are in stock in sufficient quantity
- only XY pieces - last quantities in stock
- information about the preliminary date - goods are not in stock, but are ordered and we are waiting for delivery
- on demand/to order - goods are not in stock and not ordered
- unavailable - no longer produced or currently not available for order

Barcode: SP000090
Internal Reference: SP000090

Položka Funkcia/Označenie

1) Prípojka napájacieho napätia	2) Tlačidlo nastavenia
3) Rozhranie RS-485	4) Digitálny výstup (aktívna energia)
5) Vstup merania teploty (PT100)	6) Vstup merania zostatkového prúdu I5
7) Blokovanie modulu	8) LED (komunikácia)
9) Tlačidlo 1	10) Komunikačné rozhranie modulu
11) Tlačidlo 2	12) LED (aktivita impulzu )
13) Blokovanie modulu	14) Vstupy merania napätia V1, V2, V3 a VN
15) Vstupy merania prúdu I1 až I4	16) Kryt pre skrutkové svorky (14) a (15)
17) Displej zariadenia	18) Krycia doska pre skrutkové svorky (1) až (6)

Tab: Prístroj štruktúra - Pripojenia a ovládacie prvky
